Electrical Blueprint Takeoff: 2026 Beginner’s Guide

What if the difference between a profitable project and a financial disaster isn’t your labor rate, but a single missed symbol on page E-201? For many estimators, the electrical blueprint takeoff process feels like a race against a ticking clock where one small oversight in conduit length or a misunderstood legend entry can erase your entire profit margin. It’s a high-stakes grind that often leads to missed deadlines and the constant, nagging fear that you’ve underquoted. We understand that frustration because we’ve been in the trenches ourselves, facing the same confusing legends and manual counting errors that eat away at your evenings.

You deserve a workflow that doesn’t rely on guesswork or manual counting that takes days to complete. This guide will show you how to master a systematic method for extracting accurate material counts and labor units, even with the complex 2026 NEC requirements for EV charging and arc flash marking. We’ll walk through a repeatable, professional strategy that builds your confidence and protects your bottom line from start to finish. It’s time to trade the stress of the manual hunt for a reliable system that puts you back in control of your bids.

What Is the Electrical Blueprint Takeoff Process?

Think of the electrical blueprint takeoff process as the financial DNA of your project. It isn’t just a list of parts; it’s the moment you translate an engineer’s vision into a hard number that protects your company’s bank account. At its core, a takeoff is the systematic quantifying of every light fixture, switch, outlet, and foot of conduit shown on a set of plans. If the takeoff is flawed, the entire bid is dead on arrival. You’re either too high and lose the job, or too low and pay for the materials out of your own profit margin.

While architectural drawings show the “where” and structural drawings show the “how,” electrical drawings define the “what” and “how much.” You must be able to distinguish between these layers. Your first lines of defense against massive errors are the Title Block and the Revision Cloud. The Title Block confirms you’re looking at the right project, the correct phase, and the right scale. Revision Clouds are even more critical. They highlight changes made after the original drawings were issued. If you miss a cloud, you’re bidding on a ghost project that no longer exists, potentially missing thousands of dollars in new scope.

The ‘Estimator’s Eye’: Reading for Money, Not Just Mounting

An installer reads a plan to see where the box goes. An estimator reads a plan to see what that box costs in labor and material. This requires a shift in mindset. You must hunt for “General Notes” that often hide requirements not shown with a symbol. A single note might require all conduit in a finished space to be concealed, which could double your labor units instantly. You also need to verify if a drawing is a “Contract Document” or “Reference Only.” Bidding off reference drawings is a gamble that rarely pays off. Always verify you’re working with the “Current Revision” to ensure your electrical blueprint takeoff process reflects the actual job requirements.

The Big Four: Drawing Types for Every Takeoff

To build a complete bid, you’ll need to navigate four primary drawing types, each serving a specific purpose in your count:

• Site Plans: These focus on everything outside the building footprint. You’ll look here for underground conduit, duct banks, site lighting, and utility transformer pads.
• Floor Plans: This is where you spend the most time. It shows the horizontal layout of branch circuitry, devices, and lighting fixtures across each level.
• Detail Sheets: These provide the “fine print.” They show specific mounting heights or assembly requirements that significantly impact your labor units.
• Schematics: This includes riser diagrams and one-lines. They represent the “brain” of the system, showing how power flows from the utility service through the main switchgear to the final panels.

Decoding Symbols, Legends, and the Assembly Mindset

Never assume a circle with a tail is always a duplex receptacle. Engineers often invent their own symbols or repurpose old ones from previous CAD templates. The legend is your only source of truth for the project. If you treat the electrical blueprint takeoff process as a “one size fits all” exercise, you’ll miss the nuances that differentiate a profitable bid from a losing one. The legend is your dictionary. Without it, you’re guessing, and guessing is the fastest way to blow a budget.

Abbreviations like AFF (Above Finished Floor) or WP (Weatherproof) are small tags with big price tags. A “WP” receptacle requires a weatherproof box, a gasket, and an in-use cover. This adds about 30% more labor compared to a standard interior device. Similarly, seeing “EMT” versus “MC” on a plan changes your material costs and your labor units per foot. Abbreviations like GFCI are especially critical now that the 2026 NEC has expanded protection requirements for outdoor HVAC units. Missing these details during the count means you’re paying for those upgrades out of your own pocket later.

“Typical” notes are another area where profit bleeds out. When an engineer marks one room as “Typical of 50,” you aren’t just counting one room. You’re counting 50. Missing that one small “Typ.” note means you’ve just donated 49 rooms of labor and material to the general contractor. Always scan the floor plan for these repetitive markers before you start clicking.

Translating Symbols into Estimating Assemblies

A single “S” on a wall is a trap for beginners. It isn’t just a switch. It’s a 4-square box, a plaster ring, the device itself, a wall plate, and the wire nuts to tie it all together. This is where the assembly mindset saves your profit. Professional tools like Best Bid Next Generation use assembly-driven workflows to account for these parts automatically. You count the symbol, and the software builds the bill of materials. Without this, you’re stuck manually adding every screw and nut, which is where deadlines go to die.

Lighting and Panel Schedules: The Hidden Quantity Hubs

Refining your electrical blueprint takeoff process means looking beyond the symbols on the floor plan and diving into the schedules. Lighting schedules decode fixture types, lamping requirements, and specialized mounting hardware. If a fixture is “Type A,” you need to know if it’s recessed, surface-mounted, or pendant-hung. Panel schedules are equally vital. They help you verify circuit counts and breaker sizes for gear pricing. Don’t forget equipment schedules either. These contain the specific power requirements for HVAC units and motors, which often dictate the size of your feeders and disconnects. If you’re tired of second-guessing your counts, you can explore professional estimating tools that handle these complexities for you.

Analyzing Risers, One-Lines, and Vertical Rise

Mastering the electrical blueprint takeoff process requires you to look beyond the two-dimensional floor plan. If you only measure the horizontal lines on a page, you’re missing a massive chunk of your material costs. One-line diagrams and riser diagrams are where you find the heavy hitters: the main switchgear, the transformers, and the long feeder runs that connect them. These drawings are the roadmap of the entire system. They show you the path power takes from the utility transformer all the way down to the final branch panel. Without a deep dive into these schematics, you’re basically guessing at the most expensive parts of the job.

Mastering the One-Line Diagram for Gear Takeoff

The one-line diagram is your primary tool for gear takeoff. It identifies the main service entrance, distribution panels, and any motor control centers. Don’t rely on the floor plan for feeder lengths. Floor plans rarely show the exact path of a 400-amp feeder through a complex ceiling space. Instead, cross-reference the one-line with the floor plan to ensure every piece of gear has a corresponding location. This double-check prevents the “missing panel” syndrome that can cost you thousands in unquoted equipment. You’ll also spot transformer sizing and primary/secondary conduit requirements that often get buried in the site plans.

Vertical Math: Measuring What You Can’t See

Vertical rise is the most common place where estimators lose money. A floor plan shows you the horizontal distance between two points, but it won’t show the conduit “drops” and “rises.” If you have a device mounted at 18 inches AFF and your conduit is running in a 12-foot ceiling, you have 10.5 feet of vertical pipe that isn’t shown on the floor plan. Multiply that by 500 outlets and you’ve just missed over a mile of conduit and wire. Use section cuts and riser diagrams to determine these heights accurately. You can find more details on handling these calculations in our guide on Advanced Electrical Estimating Techniques.

Finally, don’t skip the detail drawings. This is where you’ll find specialized grounding and bonding requirements. The 2026 NEC has specific rules for grounding EV charging equipment and outdoor HVAC units that require more than just a standard green wire. These details often require extra copper, specialized lugs, or specific bonding jumpers that a generic symbol won’t show. If you ignore the details, you’re essentially guessing on the “fine print” of the contract. Accurate takeoff means accounting for every lug and ground bush, not just the big pipes.

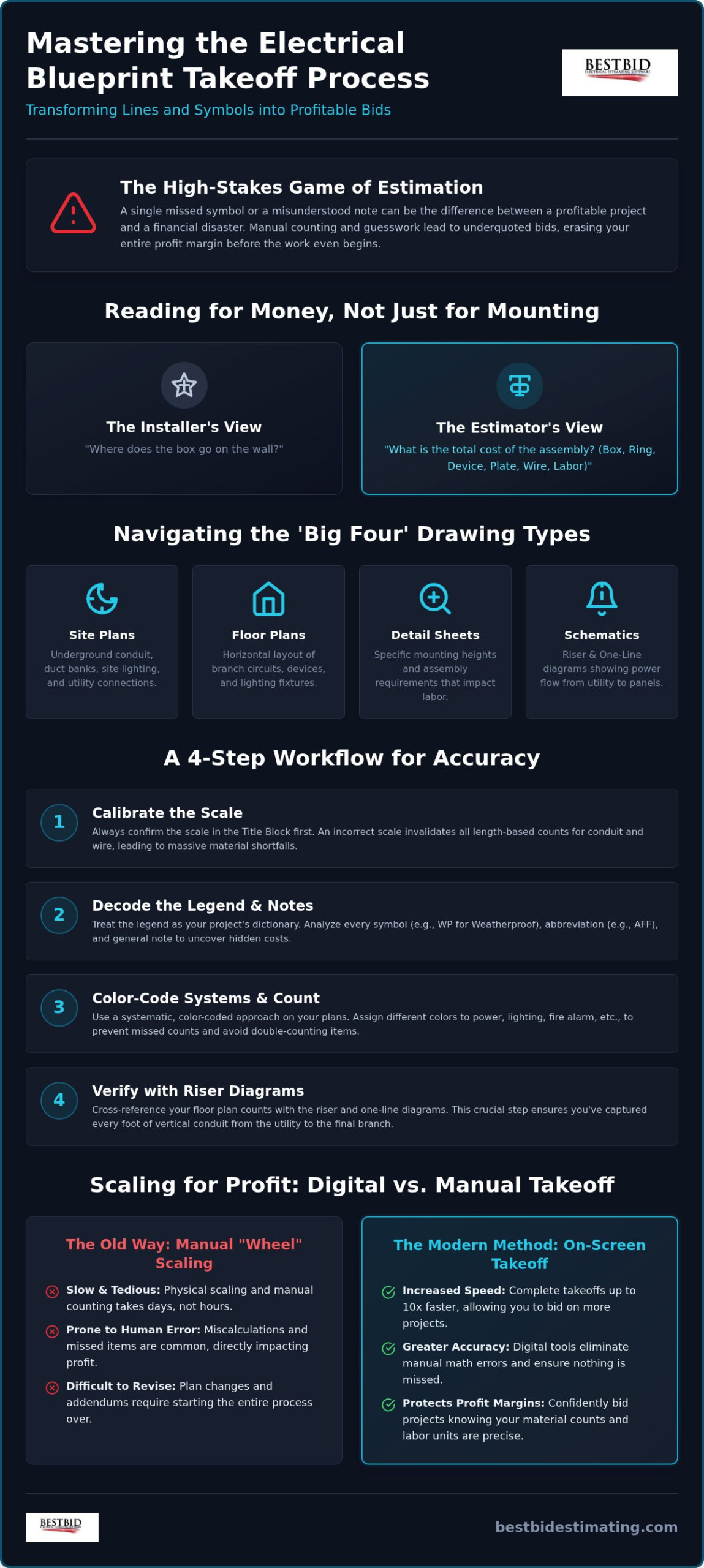

The 4-Step Electrical Blueprint Takeoff Workflow

Establishing a repeatable electrical blueprint takeoff process is the only way to ensure your bids stay consistent. You can’t rely on a “gut feeling” when thousands of dollars are on the line. A structured workflow removes the emotion and replaces it with data you can trust. This process ensures that every device, every foot of conduit, and every labor hour is accounted for before you ever hit “submit.” It’s about building a bid that protects your company’s profit margins, not just winning a job at any cost.

Phase 1: Scale Calibration and Verification

Scale errors are the most common cause of bidding disasters. If your digital scale is off by just a fraction of an inch, your conduit and wire totals will be wrong by hundreds, or even thousands, of feet. Always use a “known dimension” to calibrate your drawings. While a standard 3-foot doorway can work in a pinch, column lines are far more reliable for accuracy. Never trust the scale printed in the title block without verifying it yourself. If you encounter “Not to Scale” (NTS) drawings, you must manually verify dimensions against other plans to avoid a financial catastrophe. Any professional electrical estimating for beginners program will tell you that if your scale is wrong, your bid is wrong. Period.

Phase 2: Execution and Data Entry

Once your scale is locked in, you move to the “Count” and “Measure” phases. Use a consistent color-coding standard to keep your head clear. We recommend Blue for power, Green for lighting, and Orange for low voltage. This visual organization makes it easy to spot a missed receptacle or a forgotten light fixture during your final walk-through. Group these items into “Bid Areas,” such as “First Floor Office” or “Parking Garage.” This makes it much easier to manage the project and track costs after you win the contract. As you work, move your data directly into your electrical estimating software to eliminate the errors that come with manual tallying.

The final step is the “Final Review.” This is your sanity check. Compare your takeoff totals against the project specifications. If the specs call for 100 emergency lights but your takeoff only shows 85, you have a problem. This review ensures your electrical blueprint takeoff process captures the “fine print” that symbols often miss. Accurate estimating is a skill that takes time to master, but you can view our software options to see how we help contractors streamline this entire workflow and bid with confidence.

Scaling for Profit: Software vs. Manual Takeoff

Why are you still using a scaling wheel? In 2026, manual takeoff isn’t just slow; it’s a liability. When you roll a wheel across a paper plan, you’re inviting human error into the most sensitive part of your business. A single slip or a misread dial can throw off your entire electrical blueprint takeoff process. Digital tools have replaced the wheel because they offer something manual methods can’t: a permanent, visible audit trail. You can see exactly what you counted and what you missed at a single glance.

Built-in On-Screen Takeoff (OST) changes the game by preventing “double-counting” and missed devices. When you click a symbol on a screen, it’s marked. It’s done. You don’t have to wonder if you already tallied that smoke detector or that floor box. This level of accuracy protects your profit margins from the start. It moves you from just “reading” a plan to actually “winning” the bid with a professional presentation that shows the GC you know your numbers inside and out.

The Best Bid Advantage: No Monthly Fees

Most software companies want to rent you their tools forever. We don’t believe in that. The subscription model often feels exploitative, especially for smaller contractors who want to own their assets. With our “Buy it and Own it” philosophy, you get professional-grade tools without the ongoing burden of monthly payments. Our 1-click OST-to-estimate transfer slashes bidding time by 50% because it eliminates the need for manual data re-entry. You can check our pricing guide to see the real ROI of owning your tools instead of renting them.

Final Review: Avoiding the Most Common Takeoff Mistakes

Even with the best tools, you still need the “Estimator’s Eye” we discussed earlier. The “Missed Note” trap is still the biggest threat to your bid. You have to read every word on the sheet, not just the lines. Sometimes a tiny note in the corner changes the entire specification for a room. You must also compare architectural plans to your electrical drawings. Why? Because the architect might have moved a wall or added a cabinet that creates a clearance issue for your panels. If you catch it now, it’s a clarification. If you catch it in the field, it’s a backcharge.

Ready to start winning? You can learn how to bid electrical jobs like a seasoned pro by focusing on these systematic details. Mastering the electrical blueprint takeoff process is about more than just counting symbols; it’s about building a foundation of accuracy that supports your business for the long haul. Stop the manual grind and start bidding with the confidence of someone who knows their profit is protected.

Take Command of Your Profit Margins

Refining your electrical blueprint takeoff process is the single most effective way to protect your business from the hidden costs of 2026. By shifting from manual counting to an assembly-driven mindset, you ensure that every foot of conduit and every labor hour is accounted for before the first wire is pulled. You’ve learned how to decode complex legends and calculate the vertical rise that sinks most beginner bids. Now, it’s about putting those skills into a repeatable system that works as hard as you do.

You shouldn’t have to choose between accuracy and speed. Our software was built by a 50-year industry veteran who understands the daily grind of the trade. With built-in On-Screen Takeoff (OST) and a one-time purchase model, you can ditch the stress of missed counts and ongoing expenses. It’s time to own your tools and your future. Stop paying monthly fees and start winning more bids with Best Bid Next Generation. You have the expertise; now give yourself the advantage you deserve.

Frequently Asked Questions

What are the most common electrical symbols I need to know for a takeoff?

You will frequently encounter circles with one or two lines representing receptacles, the letter “S” for switches, and various circles or rectangles for lighting fixtures. While these are common, always verify them against the project legend. Engineers often use variations like “WP” for weatherproof or “GFI” for ground fault circuit interrupters. Never assume a symbol is universal; the legend is your only legal dictionary for that specific set of plans.

How do I calculate conduit length accurately from a 2D blueprint?

To calculate conduit length accurately, you must measure the horizontal run and then add the vertical “drops” and “rises” for every device. A 2D floor plan only shows the horizontal path. If your conduit runs in a 12 foot ceiling and drops to an outlet at 18 inches AFF, you have over 10 feet of vertical pipe that isn’t visible on the plan. This “vertical math” is essential for an accurate electrical blueprint takeoff process.

What is the difference between a schematic and a floor plan in estimating?

A floor plan shows the physical location of devices and circuitry within the building’s layout. In contrast, a schematic, such as a one-line diagram, shows the logical flow of power from the utility service to the final branch circuits. While the floor plan helps you count receptacles, the schematic is what you use to price out the main gear, transformers, and heavy feeder cables. You need both to build a complete bid.

How do I verify the scale on a digital PDF blueprint?

Verify the scale by using the “calibrate” tool in your software on a known dimension, such as a 3 foot doorway or a 30 foot column to column span. Never rely solely on the scale printed in the title block. Digital files can be resized or distorted during the export process. Calibrating against a physical measurement on the page ensures your measurements remain precise across the entire document and prevents massive material shortages.

What should I do if a symbol on the plan isn’t in the legend?

Submit an RFI to the engineer or general contractor immediately if you find a symbol that isn’t listed in the legend. Guessing what a symbol means is a high risk gamble that can lead to massive underestimation or buying the wrong materials. In the meantime, highlight every instance of that symbol. This allows you to quickly update your count and labor units once you receive a formal clarification from the design team.

How much time should an electrical blueprint takeoff take for a beginner?

A beginner should expect a mid size commercial project takeoff to take two to three full days. This time includes reading the project specifications, decoding the legend, and performing the actual count and measurement phases. As you develop your “estimator’s eye” and transition to digital tools, this time will decrease. The goal for any beginner should be accuracy first; speed is a byproduct of a repeatable and reliable workflow.

What is a one-line diagram and why is it important for my bid?

A one-line diagram is a simplified roadmap of the entire electrical system that shows how power travels from the service entrance to the distribution panels. It is critical for your bid because it defines the size and type of the main switchgear, transformers, and feeders. Without this diagram, you cannot accurately price the most expensive components of the electrical package. It serves as the “brain” of your electrical blueprint takeoff process.

Can I use general construction software for electrical takeoffs?

You can use general construction software, but it often lacks the assembly driven workflows needed for a professional electrical bid. General tools treat a symbol as a single item. In contrast, electrical specific software understands that one switch symbol represents a box, plaster ring, device, plate, and wire. Using trade specific software prevents you from manually building every assembly from scratch, which saves you hours of data entry and protects your profit.
